ALUTHERMIC offers you unique curtain wall facades which both seal and insulate.

Our new product, the 2.5” pressure plate, is suitable for new facades, and also as replacement for older leaking pressure plates.

The new insulated pressure plate can be used with all 2.5” profiles and guarantees low overhead and operating costs in the long term.

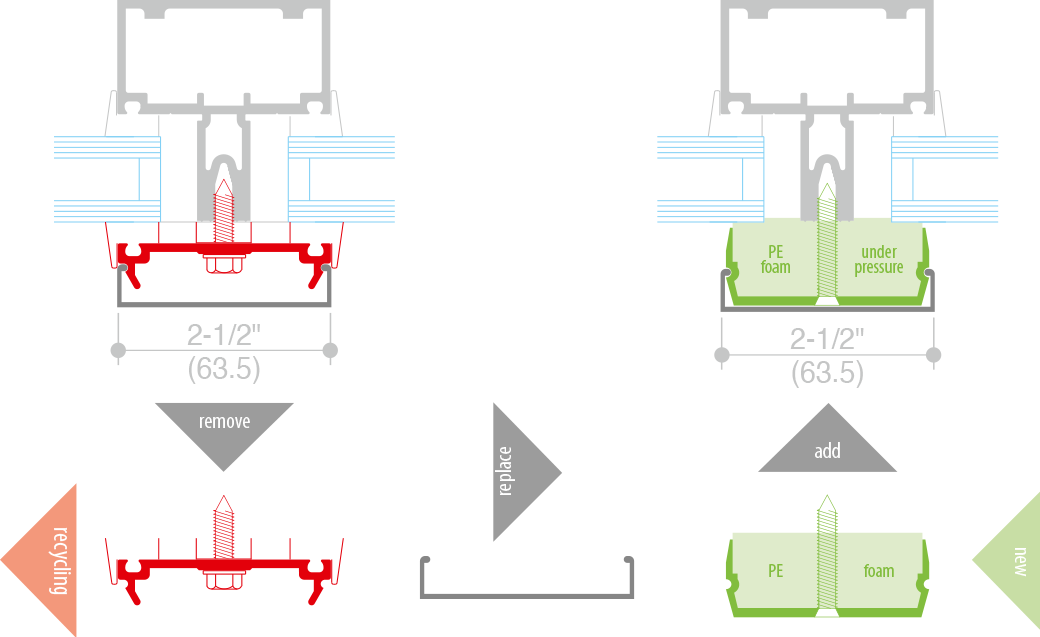

Aluthermic Insulated Pressure Plate 2.5“

Pressure Plate
  1. Pressureplate
  2. Screw
  3. AIREX structural foam (data sheet)
  4. Glass
  5. Snap cap (old or new)
  6. EPDM gasket

Our new insulated pressure plate offers excellent thermal improvement, tightness and the same dimensions as the marketable pressure plates.

You can expect many advantages:

  • R-value: 8 h ft² F/ BTU
  • For new facades, also for retrofit
  • Same size as original
  • Snap cap reusable - therefore no optical changes due to repair
  • Fast assembly
  • No condensation at the inner frame
  • No mold
  • Lower energy costs for air conditioning
  • Lower stress in the main aluminum structure
  • No air and waterleakage
